Duratuf EProtect Electrical Safety Mat
EProtect Electrical Mats Safety: Quick Overview
The EProtect electrical mats safety ensure electrical safety in workplaces having high-voltage applications. Starting from the industries requiring low voltage protection to high voltage, these mats come in handy. E-protect safety mats are available for working voltages 1 kV, 17 kV, and 36 kV. They deliver reliable performance as a protective equipment and is economical.

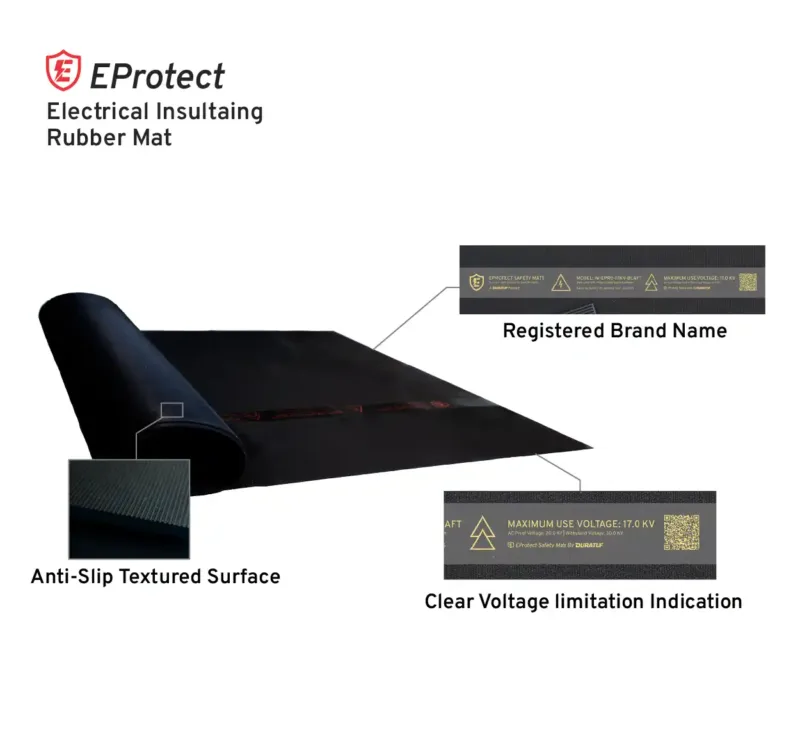

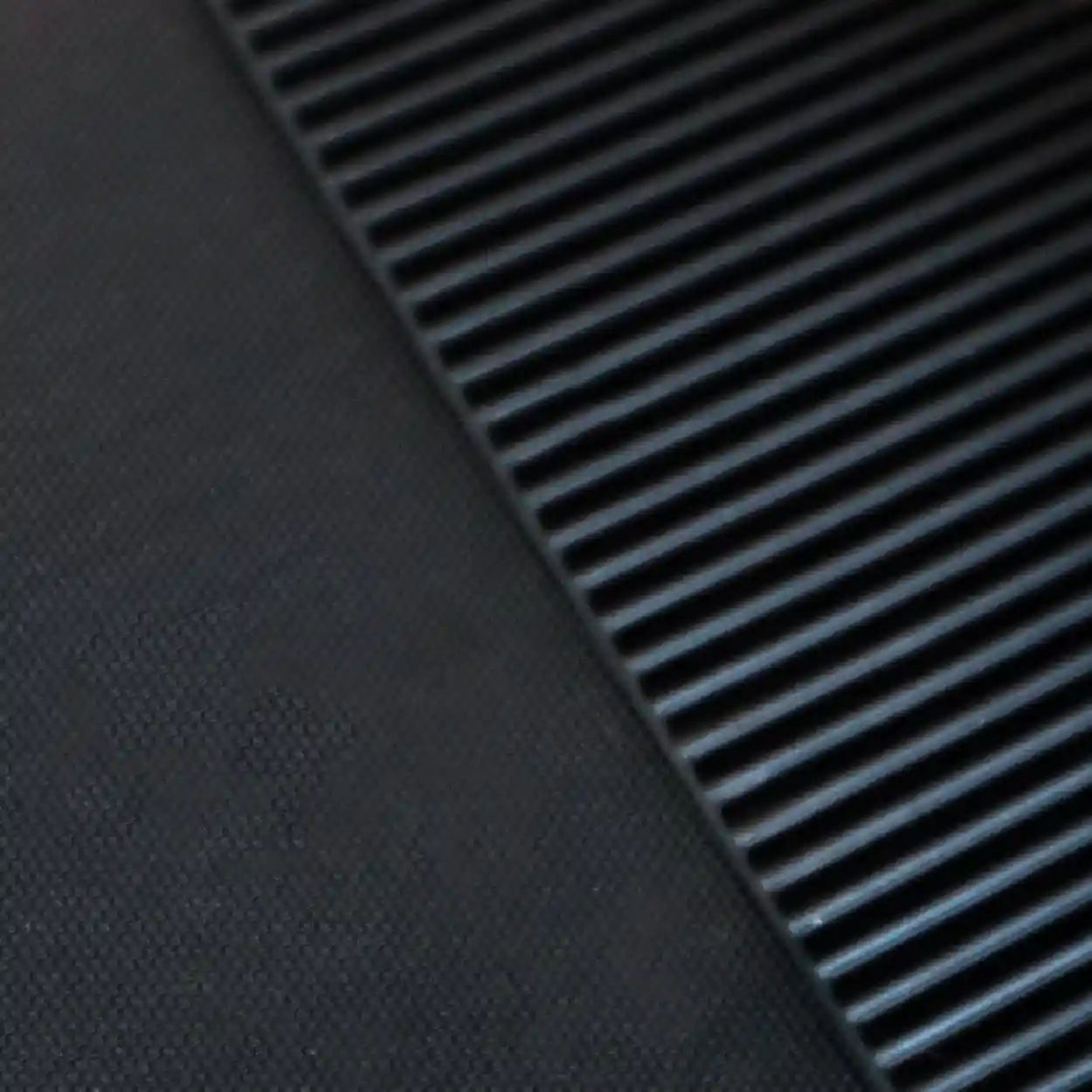

The surface design of the Eprotect safety mat electrical has anti-skid properties. They have a ribbed surface that increases that ensures stable movement and reduces the chances of accidents. Their standard color is black.

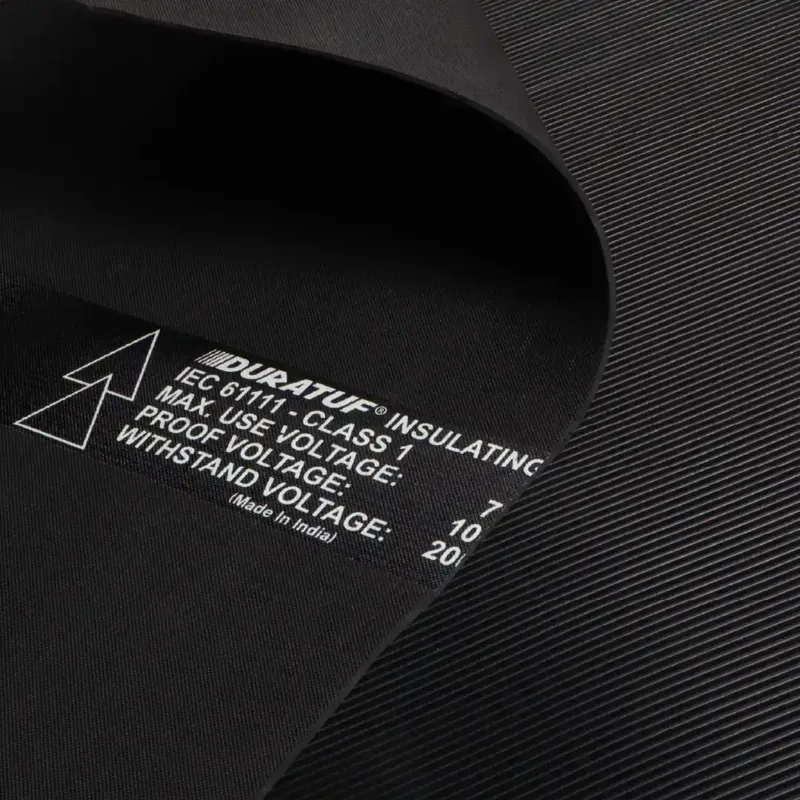

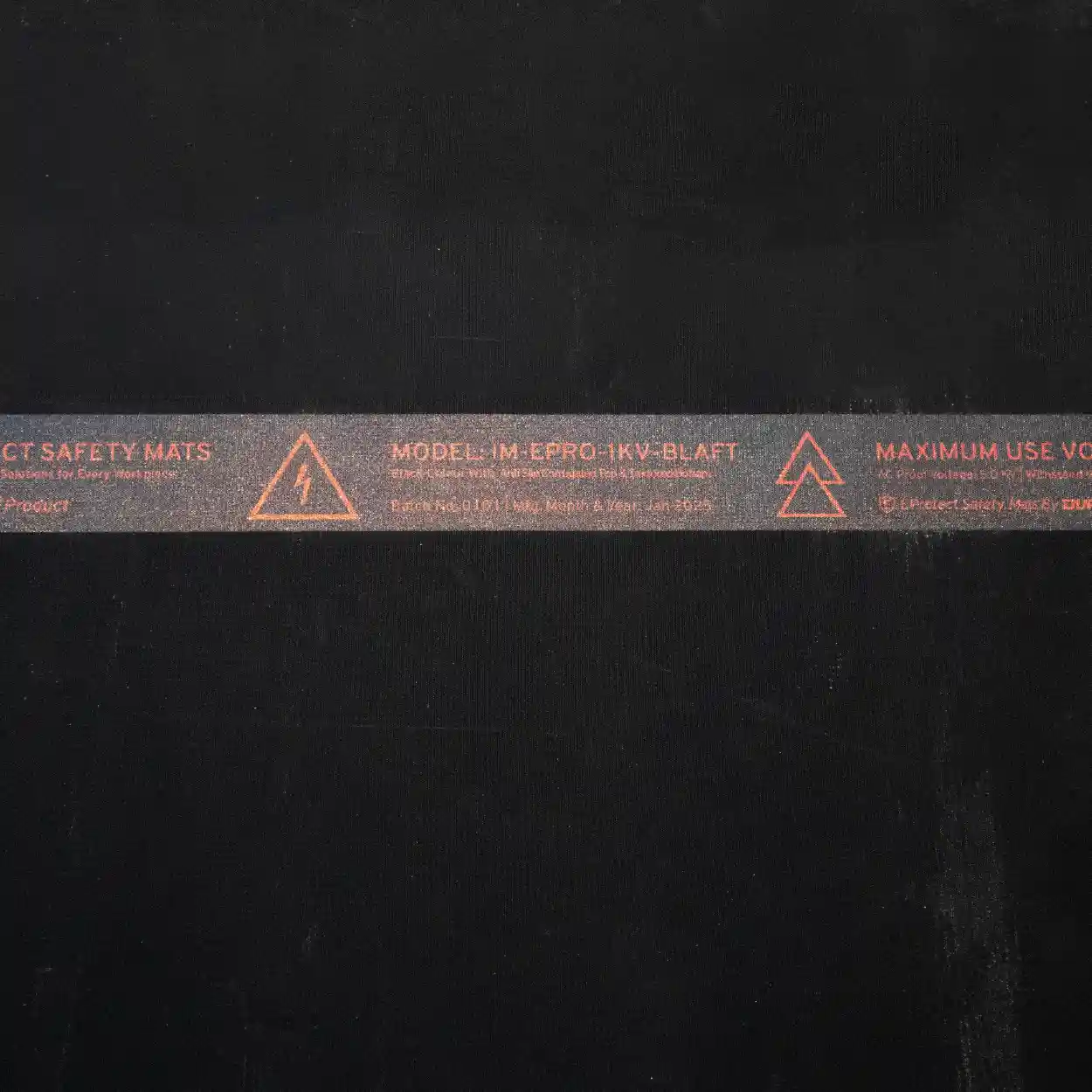

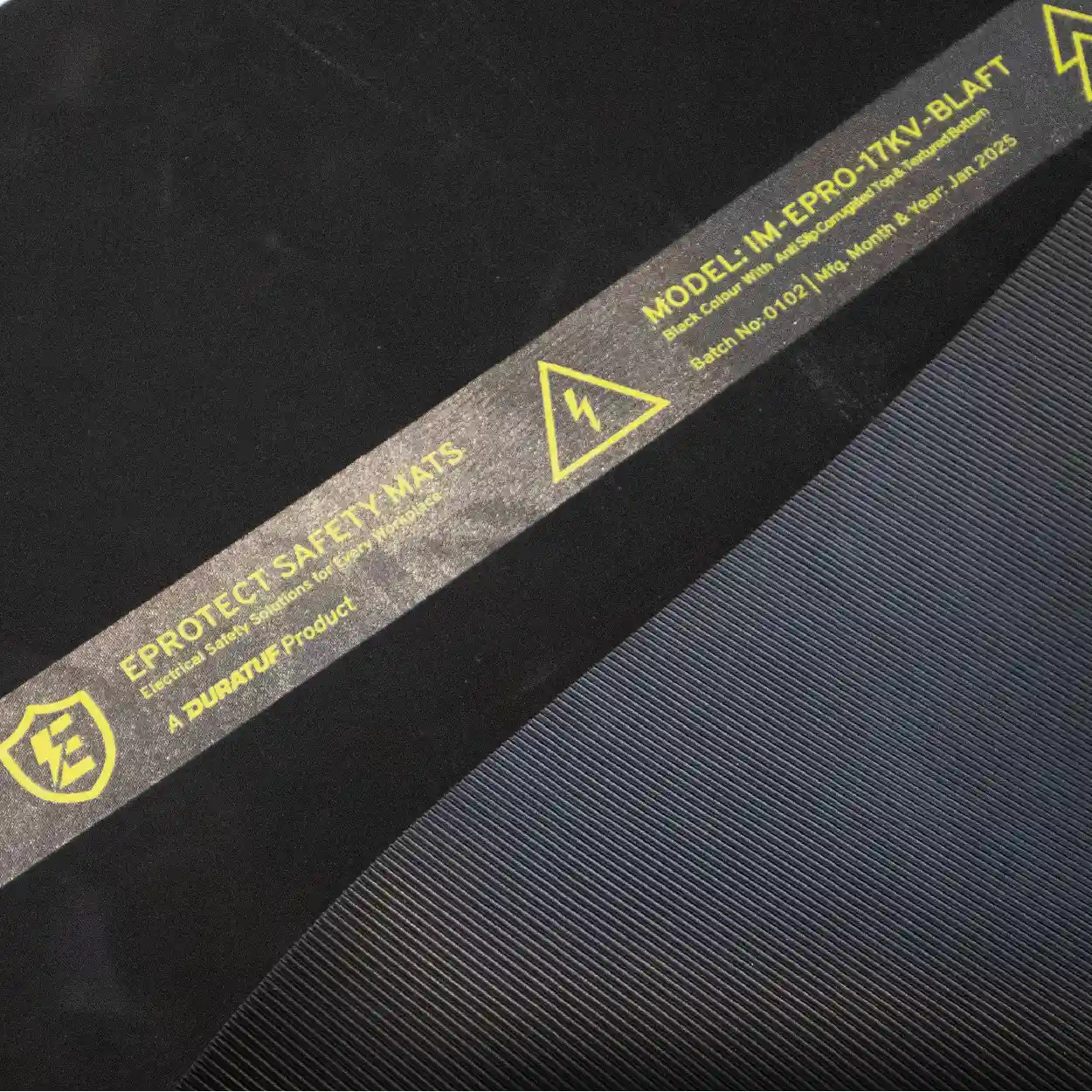

Each electrical safety mat comes with a QR code that instantly redirects you to the Material Safety Data Sheet (MSDS). Each package of safety mats has clear and comprehensive markings including critical information like maximum use voltage, manufacturing date, batch information, and other important details.
Composition of Duratuf EProtect Safety Mat Electrical
The Duratuf E-Protect electrical mats safety are made of premium-grade elastomer along with other additives. Owing to their high-quality composition, they have good physical and insulation properties.
Our E-protect safety mat electrical undergoes rigorous testing as per the ASTM D178 standard. The electrical mats undergo tests to ensure their dielectric strength, aging, AC-proof voltage, mechanical strength, UV ray resistance, and others.
Certifications & Memberships
Technical Information: Duratuf EProtect Safety Mat
| Characteristics | Values |
|---|---|
| Material Composition | Elastomer free from any insertion. Typically, a combination of natural rubber and other synthetic polymers. |
| Tensile Strength | 3.0 MPa (Min) |
| Elongation at Break | 200% (Min) |
| Hardness | 65° ± 5° ShoreA |
| Specific Gravity | 1.60 ± 0.05 |
| Working Temperature | -30°C to + 70°C |
| Dilute Acids & Bases Resistance | Not Recommended |
| Conc. Acids & Bases Resistance | Not Recommended |
| Ozone Resistance | Not Recommended |
| Oil & Solvents Resistance | Not Recommended |
Maximum Voltage of the Duratuf EProtect Safety Mat
| Product Code (SKU) | Max Use Voltage | AC Proof Voltage | Withstand Voltage |
|---|---|---|---|
| IM-EPRO-1KV-BLAFT-3MM | 1.0 KV | 5.0 KV | 10.0 KV |
| IM-EPRO-17KV-BLAFT-6MM | 17.0 KV | 20.0 KV | 30.0 KV |
| IM-EPRO-36KV-BLAFT-9MM | 36.0 KV | 40.0 KV | 50.0 KV |
Stock Roll Sizes of the Duratuf EProtect Safety Mat
| Product Code (SKU) | Colour | Anti-Skid Design | Thickness | Width | Length | Weight/Roll | Quantity Packed /Roll |
|---|---|---|---|---|---|---|---|
| IM-EPRO-1KV-BLAFT-3MM1M10M | Black | Top - Fine Ribbed & Bottom - Textured | 3.0 mm | 1 M | 10 M | 40 Kg(s) | 10m X 1 pc |
| IM-EPRO-1KV-BLAFT-3MM1M5M | Black | Top - Fine Ribbed & Bottom - Textured | 3.0 mm | 1 M | 5 M | 20 Kg(s) | 5m X 2pc(s) |
| IM-EPRO-1KV-BLAFT-3MM1M2M | Black | Top - Fine Ribbed & Bottom - Textured | 3.0 mm | 1 M | 2 M | 8 Kg(s) | 2m X 5pc(s) |
| IM-EPRO-1KV-BLAFT-3MM1M1M | Black | Top - Fine Ribbed & Bottom - Textured | 3.0 mm | 1 M | 1 M | 4 Kg(s) | 1m X 10pc(s) |
| IM-EPRO-17KV-BLAFT-6MM1M10M | Black | Top - Fine Ribbed & Bottom - Textured | 6.0 mm | 1 M | 10 M | 86 Kg(s) | 10m X 1 pc |
| IM-EPRO-17KV-BLAFT-6MM1M5M | Black | Top - Fine Ribbed & Bottom - Textured | 6.0 mm | 1 M | 5 M | 43 Kg(s) | 5m X 2pc(s) |
| IM-EPRO-17KV-BLAFT-6MM1M2M | Black | Top - Fine Ribbed & Bottom - Textured | 6.0 mm | 1 M | 2 M | 18 Kg(s) | 2m X 5pc(s) |
| IM-EPRO-17KV-BLAFT-6MM1M1M | Black | Top - Fine Ribbed & Bottom - Textured | 6.0 mm | 1 M | 1 M | 9 Kg(s) | 1m X 10pc(s) |
| IM-EPRO-36KV-BLAFT-9MM1M10M | Black | Top - Fine Ribbed & Bottom - Textured | 9.0 mm | 1 M | 10 M | 132 Kg(s) | 10m X 1pc |
| IM-EPRO-36KV-BLAFT-9MM1M5M | Black | Top - Fine Ribbed & Bottom - Textured | 9.0 mm | 1 M | 5 M | 66 Kg(s) | 5m X 2pc(s) |
| IM-EPRO-36KV-BLAFT-9MM1M2M | Black | Top - Fine Ribbed & Bottom - Textured | 9.0 mm | 1 M | 2 M | 26 Kg(s) | 2m X 5pc(s) |
| IM-EPRO-36KV-BLAFT-9MM1M1M | Black | Top - Fine Ribbed & Bottom - Textured | 9.0 mm | 1 M | 1 M | 13 Kg(s) | 1m X 10pc(s) |
Note: Manufacturing tolerance of ± 10% on thickness, ±2% on width and length and ±10% on weight shall be applicable.
Customize Your Duratuf EProtect Safety Mat
| IDENTIFICATION | OPTIONS |
|---|---|
| Branding | EPROTECT |
| Colour | Black |
| Packaging | With HDPE coloured woven fabric |
| Labelling | Label indicating Product Name, Dimensions, Working voltage, Product code to allow traceability |
Industrial Applications of Duratuf EProtect Electrical Safety Mat
Power, manufacturing, automotive, aerospace, and other major industries have various electrical systems working at high voltages. Thus, electric hazards are quite common in these industries. Electrocution, arc flashes, and other electrical hazards are common risks any worker may have while operating or maintaining these systems. This is where the E-protect electrical mats safety come into play. They are installed in the following high-voltage application areas to ensure the electrical safety of the workers in the industries:
How to Store the Duratuf EProtect Safety Mats?
If you are done using your electrical mats safety for one project or have extra ones for emergencies, what would you do? Store them! Make sure to follow these points while storing them:
- You should keep your electrical safety mat in a cool place away from sunlight.
- Make sure to keep it in a clean and dry place. This is because prolonged water exposure can result in mold formation on the safety mat electrical.
- Keep your electrical safety mat away from sharp objects while storing it.
- You can lay them flat on top of each other and use cover sheets between them to avoid creasing. You can roll them loosely to prevent the formation of creases.
Benefits of Using Duratuf EProtect Electrical Mats Safety
- Authentic and reliable safety gear that can protect you from electrical hazards
- The E-protect electrical mats safety have a budget-friendly upfront cost
- Has high durability and longevity and does not require frequent repair or replacement
- Tested as per the ASTM D178, ASTM D412, ASTM D2240, and ASTM D297 standards
Special Features of Duratuf EProtect Safety Mat
100% Electrical Shock Proof
At Duratuf we take quality and performance very seriously. We pretest all our electrical rubber mats to the required work voltage prior to shipping them to our clients.
Safety Audit Compliant
We take into considering all safety testing approvals and provide you IEC 61111 compliant mats approved by all government and safety audit agencies.
Chemical & Flame Retardant
All our High-Voltage Insulating Mats are produced using special compound formulations ensuring they are flame retardant and resistant to acids, alkalis, and oils.
Reasonably Low Pricing
Quality should come in a pocket pinch. We keep our pricing and profit margins low to ensure that our customers can easily afford 100% safety from shocks.
Fast Shipping Globally
Our wide dealer network, large inventory, and multi-locational warehouses get you the fastest delivery in minimum time anywhere in the world.
