Duratuf Premium Electrical Rubber Mat in UAE for High-Voltage Safety
Electrical safety regulations across DEWA, ADDC, SEWA, and FEWA governed industries require insulating mats that meet verified international dielectric standards. The mat under your operator’s feet needs to be correctly classed for your system voltage and type-tested to the standard your project specification calls for.
Duratuf electrical insulating mats are type-tested to IEC 61111:2009 and ASTM D178 across Class 0 to Class 4, with working voltages from 1 kV to 36 kV. The IEC 61111:2009 range is the standard of choice for most UAE industries and infrastructure projects compaines. The ASTM D178 range is available for international projects, oil and gas facilities, and specifications that reference American norms. Both ranges are maintained and supplied from our Dubai warehouse, with in-stock rolls available for fast delivery to any emirate.
The insulating rubber used in our mats is free from any insertion, conforming to IEC 61111:2009 material composition requirements. It is flame retardant, moisture resistant, and rated for working temperatures of -25°C to +55°C , which covers the full range of UAE substation and indoor electrical environments. Custom thicknesses, widths, and lengths are available for project-specific requirements.
Certifications & Memberships
Technical Specification of Electrical Insulating Mats
Duratuf electrical insulating mats are available in two internationally recognised standards: IEC 61111:2009 for UAE and GCC projects, and ASTM D178 for projects referencing American norms. Both standards cover Class 0 to Class 4, with voltage ratings from 1.0 kV to 36.0 kV. Select your class based on the maximum working voltage of your installation.

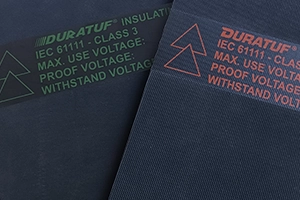

IEC 61111:2009 Electrical Rubber Mats Specifications
| Product Code | Class | Max Use Voltage | AC Proof Voltage | Withstand Voltage | Recom. Thickness |
|---|---|---|---|---|---|
| IM-IEC-C0 | 0 | 1.0 kV | 5.0 kV | 10.0 kV | 2.0 mm |
| IM-IEC-C1 | 1 | 7.5 kV | 10.0 kV | 20.0 kV | 2.0 mm |
| IM-IEC-C2 | 2 | 17.0 kV | 20.0 kV | 30.0 kV | 3.0 mm |
| IM-IEC-C3 | 3 | 26.5 kV | 30.0 kV | 40.0 kV | 4.0 mm |
| IM-IEC-C4 | 4 | 36.0 kV | 40.0 kV | 50.0 kV | 5.0 mm |
Customisation available: thickness up to 14 mm, width up to 1,220 mm, length up to 15 m. Contact us for cut-to-size orders.

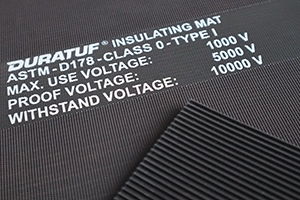

ASTM D178 Electrical Insulating Mats Specifications
| Product Code | Class | Max Use Voltage | AC Proof Voltage | Dielectric Voltage | Recom. Thickness |
|---|---|---|---|---|---|
| IM-ASTM-C0 | 0 | 1.0 kV | 5.0 kV | 10.0 kV | 3.2 mm |
| IM-ASTM-C1 | 1 | 7.5 kV | 10.0 kV | 20.0 kV | 4.8 mm |
| IM-ASTM-C2 | 2 | 17.0 kV | 20.0 kV | 30.0 kV | 6.4 mm |
| IM-ASTM-C3 | 3 | 26.5 kV | 30.0 kV | 40.0 kV | 9.5 mm |
| IM-ASTM-C4 | 4 | 36.0 kV | 40.0 kV | 50.0 kV | 12.7 mm |
Unless specified, ASTM D178 mats are supplied as Type I. Type II variants with ozone, flame, or oil resistance are available on request.
Applications of Electrical Rubber Mat in UAE
Electrical insulating mats are a mandatory safety layer wherever live equipment is operated or maintained at system voltage. Across the UAE, this covers utility substations, oil and gas control rooms, commercial tower building services, data centers, and large infrastructure projects. Duratuf electrical insulating mats can be used across the following installation types in the UAE and GCC:
- Electrical substations and switchboard rooms under DEWA, ADDC, SEWA, and FEWA regulations
- HT and LT control panel rooms in industrial and commercial facilities
- Transformer rooms and generator rooms in commercial towers, hotels, and data centers
- Motor control center (MCC) rooms in manufacturing plants and free zone industrial units
- Bus bar and exposed conductor areas in utility-scale electrical installations
- ADNOC and oil and gas facility electrical maintenance and switchgear areas
- Airport ground operations electrical infrastructure (Dubai Airports, Abu Dhabi Airports)
- Outdoor live-equipment maintenance work requiring Type II ASTM mats with ozone and oil resistance.
Features of IEC 61111:2009 Electrical Insulating Mats | Duratuf
Exclusive Features Of Duratuf Electrical Insulation Mats
High Di-electric Strength
Quality-Certified
Safety-Audit Passed
Chemical, UV, Ozone and Flame Retardant
Moisture and Water Resistant
Up to 10,000 sq m Ready Stock
Free Expert Guidance
Competitive Pricing
End-to-End Customer Support
