#1 Trusted Supplier of Electrical Rubber Mats in Qatar
Buy IEC 61111:2009 and ASTM D178 compliant electrical insulating mats for Qatar’s power & energy, LNG facilities, petrochemical, infrastructure projects and other industries. Class 0 to Class 4 in stock. Dispatched from our Dubai warehouse across Qatar and the GCC.
Premium Quality Electrical Rubber Mat in Qatar for High-Voltage Safety
All electrical installations in Qatar are governed by KAHRAMAA (Qatar General Electricity and Water Corporation), the sole authority for electricity transmission and distribution across the country. KAHRAMAA’s wiring regulations and TRSSS technical standards require electrical safety equipment, including insulating mats, to comply with IEC standards as the primary framework, with British Standards as a secondary option. KAHRAMAA explicitly mandates voltage class compliance for all electrical work from Class 1 as a minimum for low-voltage installations, and Class 3 as a minimum for medium-voltage systems up to 33kV.
Qatar’s electrical infrastructure extends well beyond the utility network. QatarEnergy operates the world’s largest LNG production complex at Ras Laffan Industrial City, with ongoing expansion under the North Field project adding significant new electrical infrastructure. Mesaieed Industrial City hosts QAPCO, Qatar Steel, and QATALUM, each with large electrical maintenance operations. Lusail City, Qatar’s newest urban district. Qatar’s coastal environment makes material performance in these conditions a relevant selection factor for any electrical safety mat specification.
Duratuf electrical insulating mats are type-tested to IEC 61111:2009 across Class 0 to Class 4, covering working voltages from 1.0 kV to 36.0 kV, the full range of KAHRAMAA’s distribution network from 11kV to 33kV. ASTM D178 mats are also available for international contractor specifications and joint venture projects referencing American norms. Both ranges are manufactured from elastomers free from any insertion, are flame retardant, and maintain their dielectric properties within the working temperature ranges of air-conditioned electrical rooms standard across Qatar’s industrial and commercial facilities.
Certifications & Memberships
Technical Specification of Electrical Insulating Rubber Mat
Duratuf electrical insulating mats are available in IEC 61111:2009 and ASTM D178, both covering Class 0 to Class 4. In Qatar, IEC 61111:2009 is the standard aligned with KAHRAMAA’s wiring regulations and the TRSSS technical series. ASTM D178 mats are available for international joint venture and contractor specifications. KAHRAMAA specifies Class 1 as the minimum for LV installations and Class 3 as the minimum for MV systems up to 33kV. Select your class based on the maximum working voltage of your installation.
IEC 61111:2009 Electrical Rubber Mats Specification
| Product Code | Class | Max Use Voltage | AC Proof Voltage | Withstand Voltage | Recom. Thickness |
|---|---|---|---|---|---|

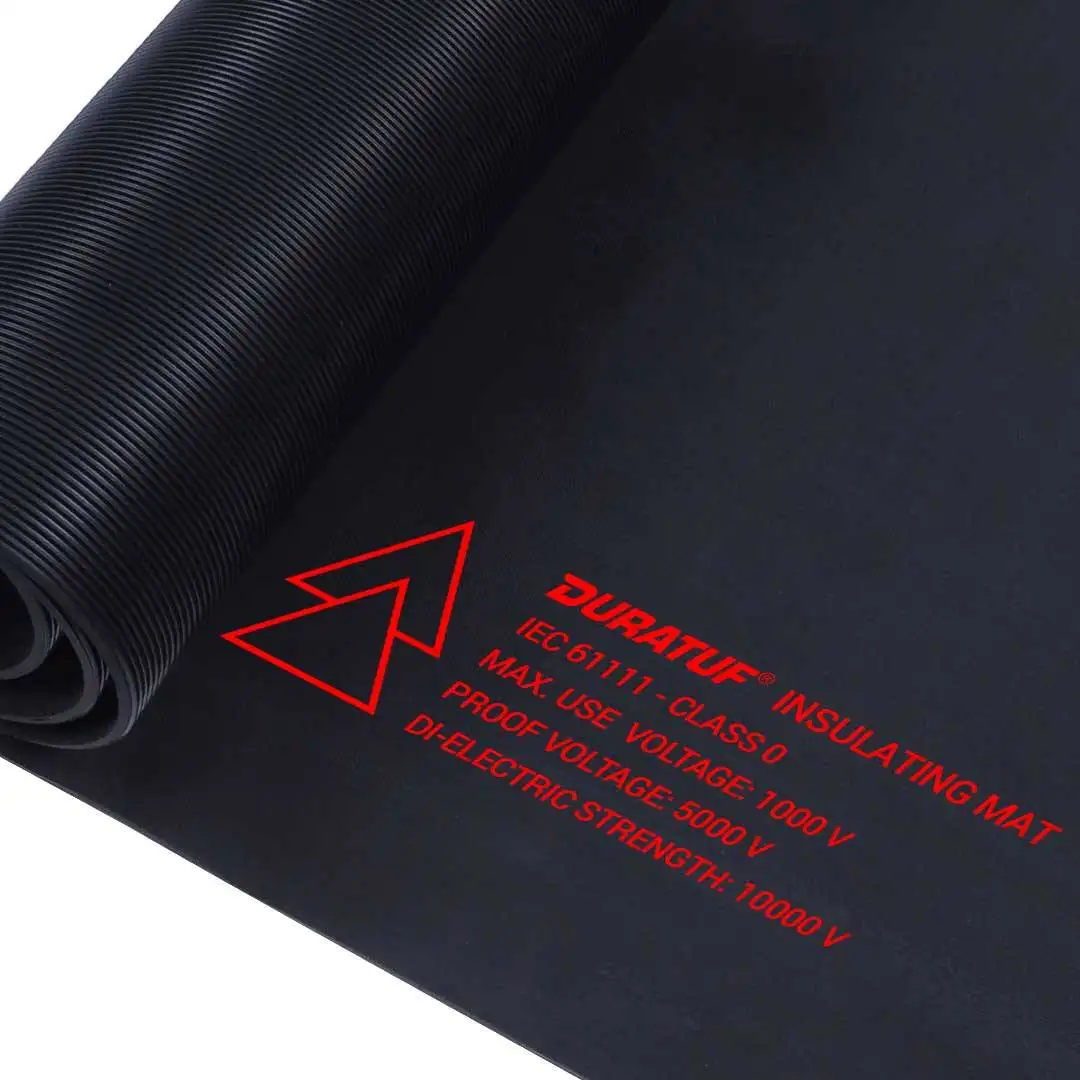

| IM-IEC-C0 | 0 | 1.0 kV | 5.0 kV | 10.0 kV | 2.0 mm |
| IM-IEC-C1 | 1 | 7.5 kV | 10.0 kV | 20.0 kV | 2.0 mm |
| IM-IEC-C2 | 2 | 17.0 kV | 20.0 kV | 30.0 kV | 3.0 mm |
| IM-IEC-C3 | 3 | 26.5 kV | 30.0 kV | 40.0 kV | 4.0 mm |
| IM-IEC-C4 | 4 | 36.0 kV | 40.0 kV | 50.0 kV | 5.0 mm |
Customisation available: thickness up to 14 mm, width up to 1,220 mm, length up to 15 m. Contact us for cut-to-size orders.
ASTM D178 Electrical Insulating Mats Specifications
| Product Code | Class | Max Use Voltage | AC Proof Voltage | Dielectric Voltage | Recom. Thickness |
|---|---|---|---|---|---|
| IM-ASTM-C0 | 0 | 1.0 kV | 5.0 kV | 10.0 kV | 3.2 mm |
| IM-ASTM-C1 | 1 | 7.5 kV | 10.0 kV | 20.0 kV | 4.8 mm |
| IM-ASTM-C2 | 2 | 17.0 kV | 20.0 kV | 30.0 kV | 6.4 mm |
| IM-ASTM-C3 | 3 | 26.5 kV | 30.0 kV | 40.0 kV | 9.5 mm |
| IM-ASTM-C4 | 4 | 36.0 kV | 40.0 kV | 50.0 kV | 12.7 mm |
Unless specified, ASTM D178 mats are supplied as Type I. Type II variants with ozone, flame, or oil resistance are available on request.
Applications of Electrical Rubber Mat in Qatar
Qatar’s electrical safety mat requirements span the KAHRAMAA utility network, the country’s dominant LNG and petrochemical sector, and a rapidly growing portfolio of infrastructure and urban development projects. Electrical mats are a mandatory safety layer wherever live equipment is operated or maintained at system voltage. Duratuf electrical insulating mats can be used across the following installation types in Qatar:
- KAHRAMAA transmission and distribution substations operating at 11kV, 33kV, 132kV, and 400kV across Doha and regional networks
- QatarEnergy LNG facility electrical control rooms and switchgear areas at Ras Laffan Industrial City
- North Field LNG expansion project electrical installations and contractor safety requirements
- QAPCO, Qatar Steel, and QATALUM plant switchgear rooms and MCC areas in Mesaieed Industrial City
- Lusail City infrastructure electrical rooms, including substation and building services installations
- Hamad International Airport ground operations and terminal electrical maintenance areas
- Qatar Rail metro power supply substations and traction equipment electrical rooms
- Commercial tower and mixed-use development building services across Doha’s West Bay and downtown districts
- FIFA World Cup 2022 legacy facility electrical maintenance operations.
Features of IEC 61111:2009 Electrical Insulating Mats | Duratuf
Exclusive Features Of Duratuf Electrical Insulation Mats
High Di-electric Strength
Quality-Certified
Safety-Audit Passed
Chemical, UV, Ozone and Flame Retardant
Moisture and Water Resistant
Up to 10,000 sq m Ready Stock
Free Expert Guidance
Competitive Pricing
End-to-End Customer Support
